2025 Isuzu F Series FSR 140/120-240 AM R56

Description

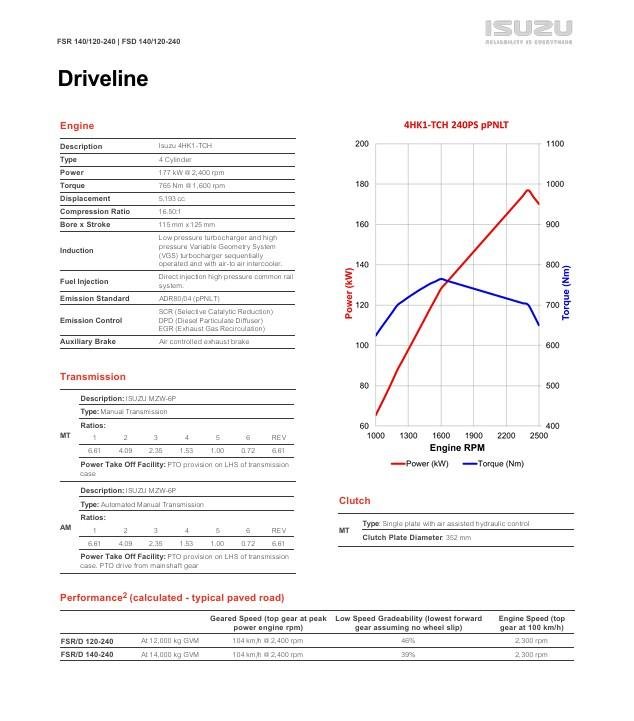

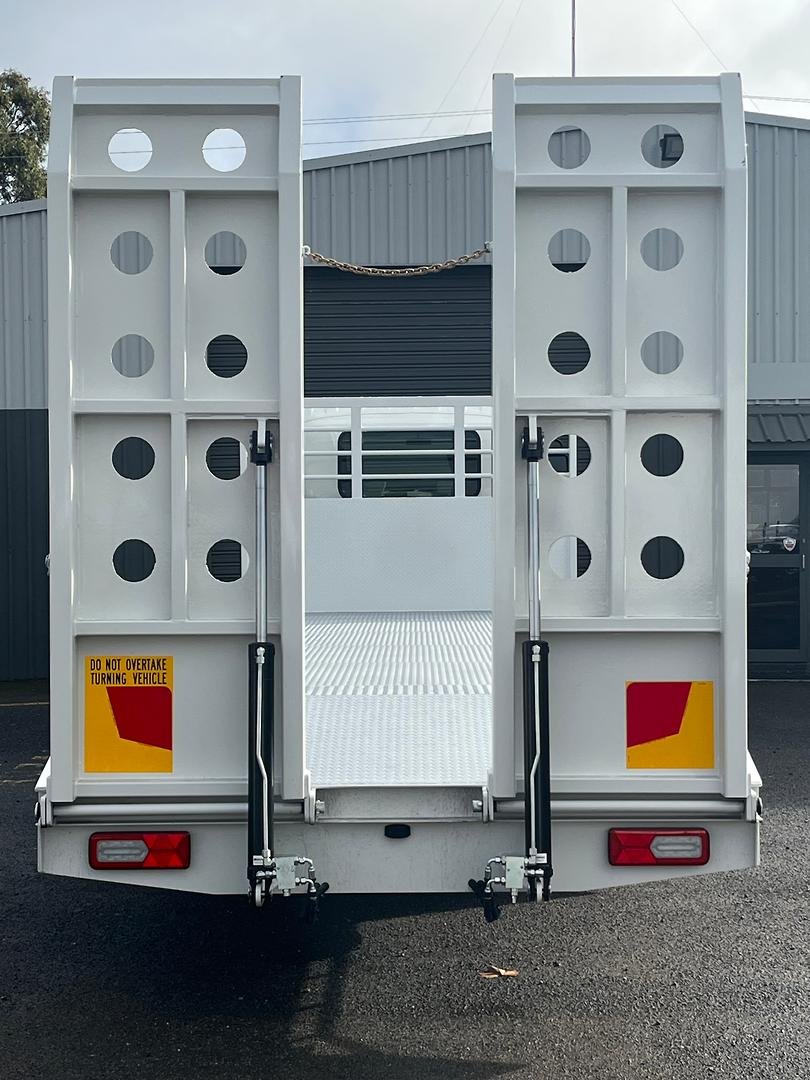

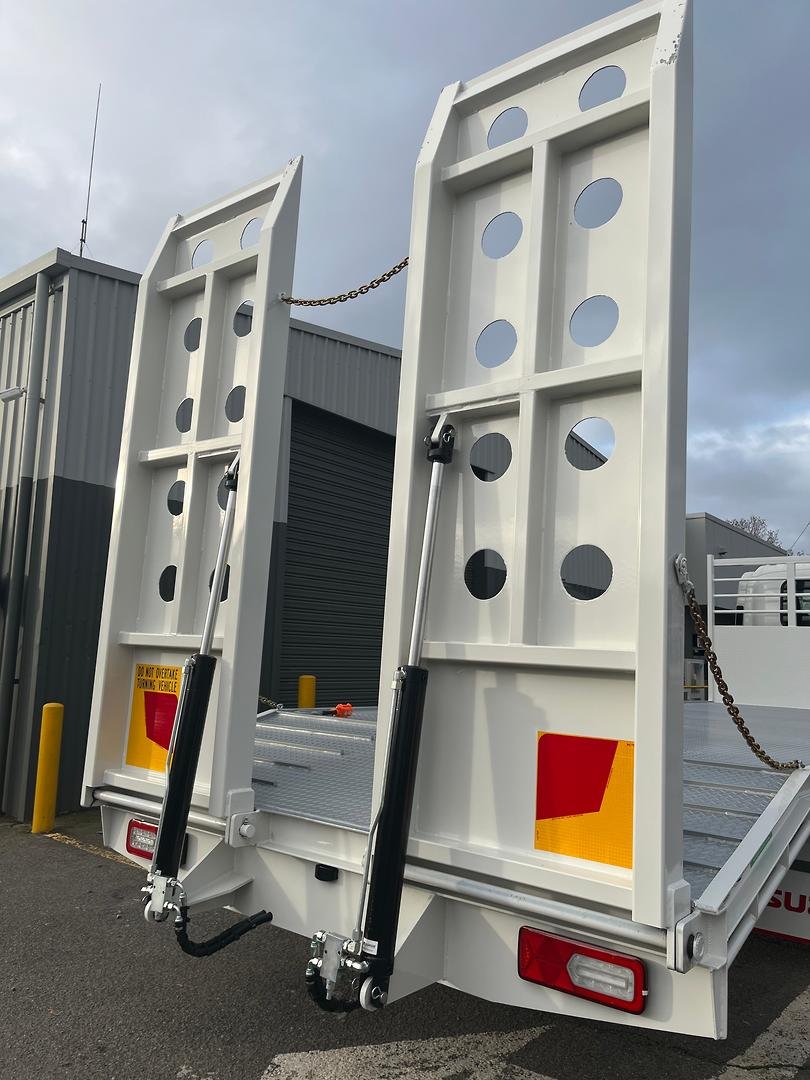

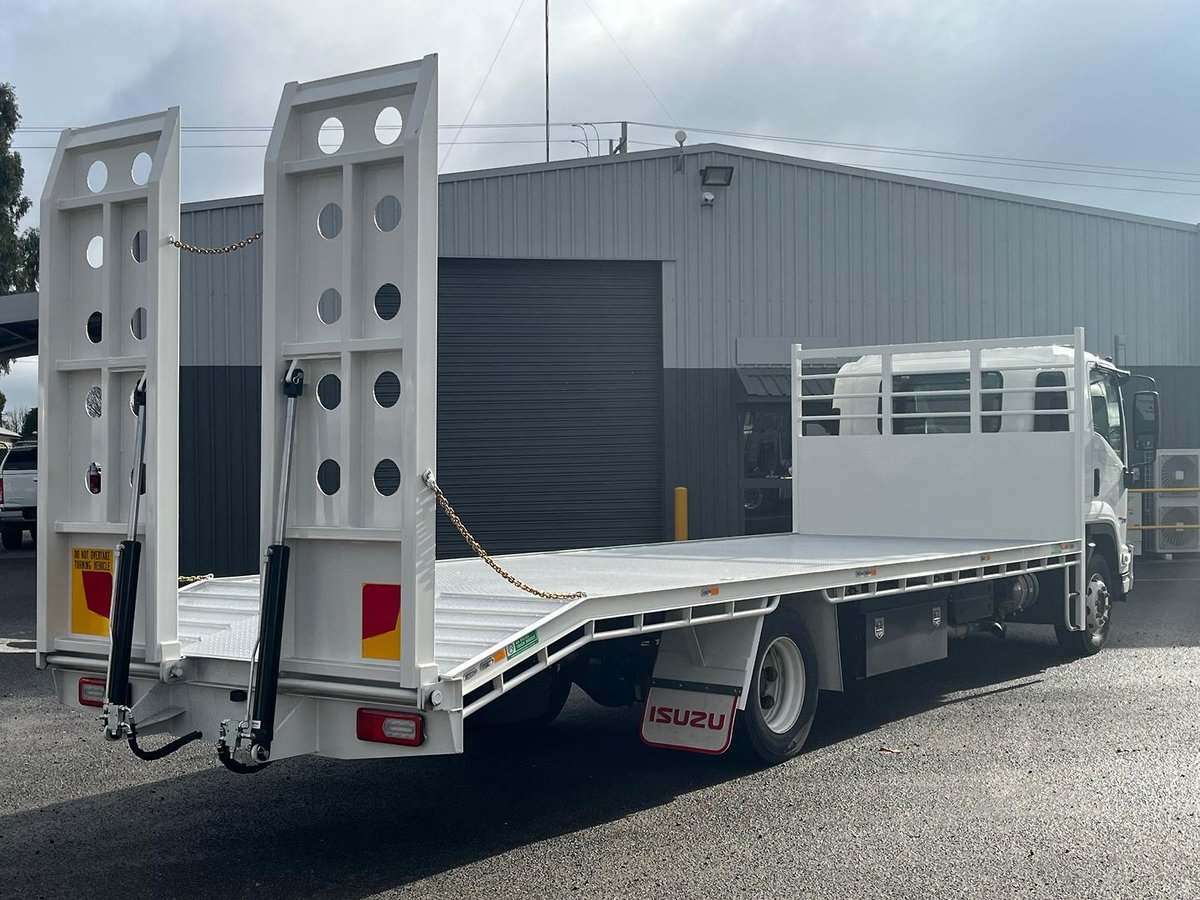

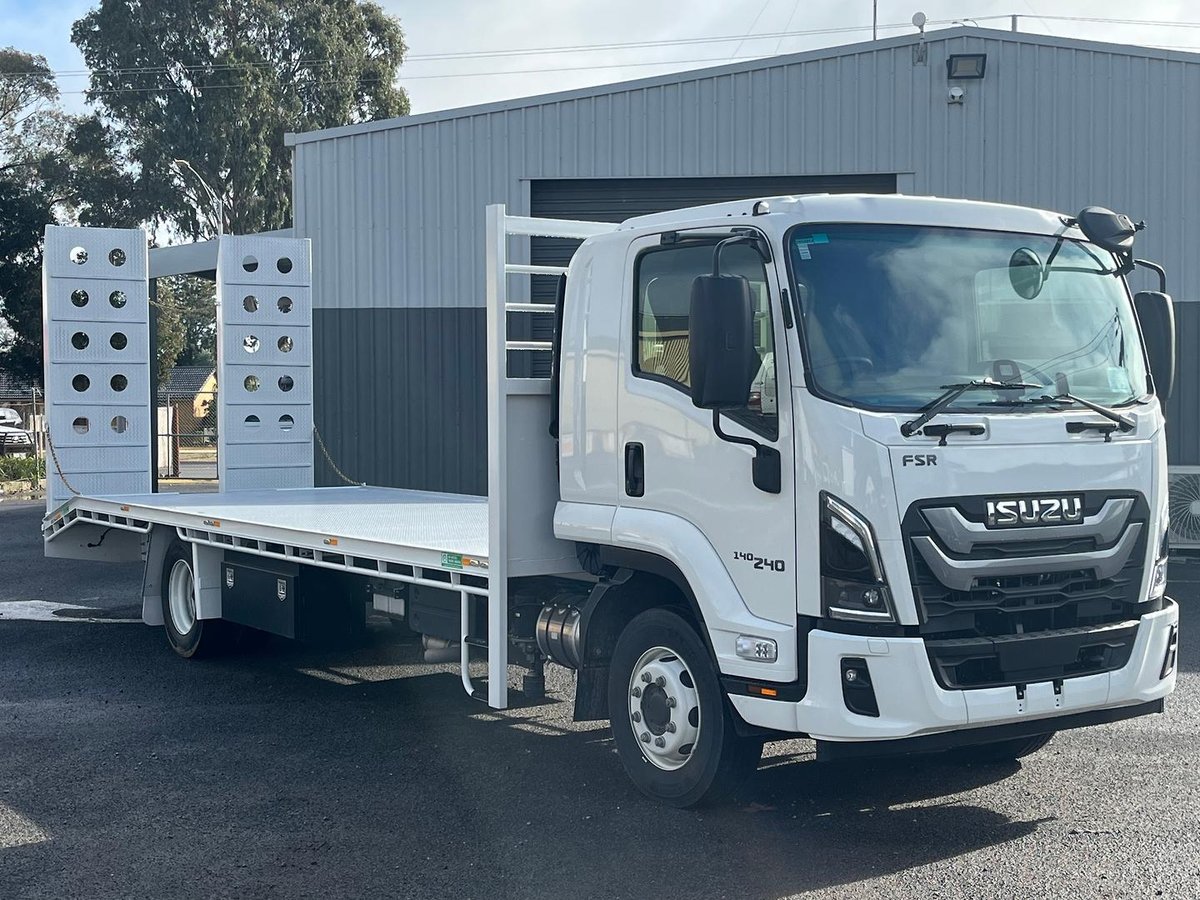

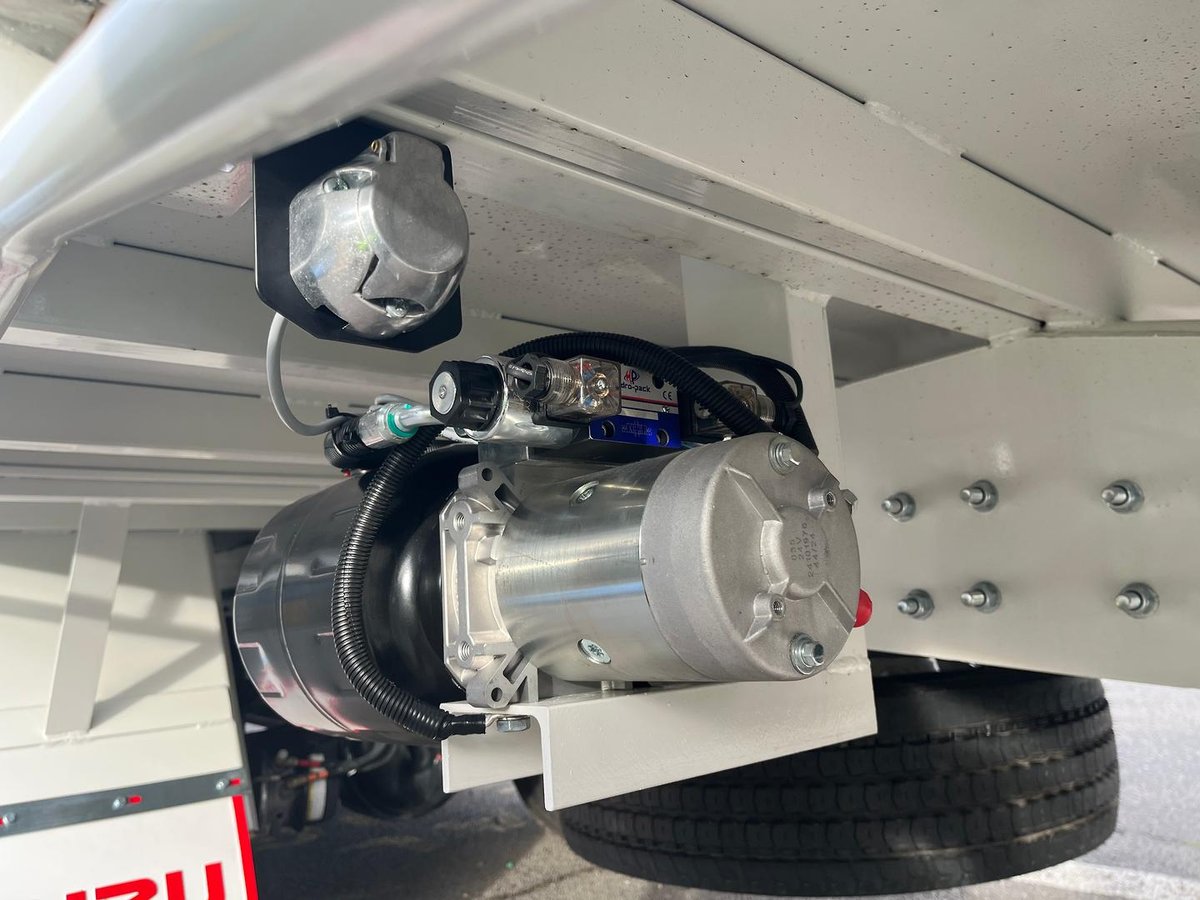

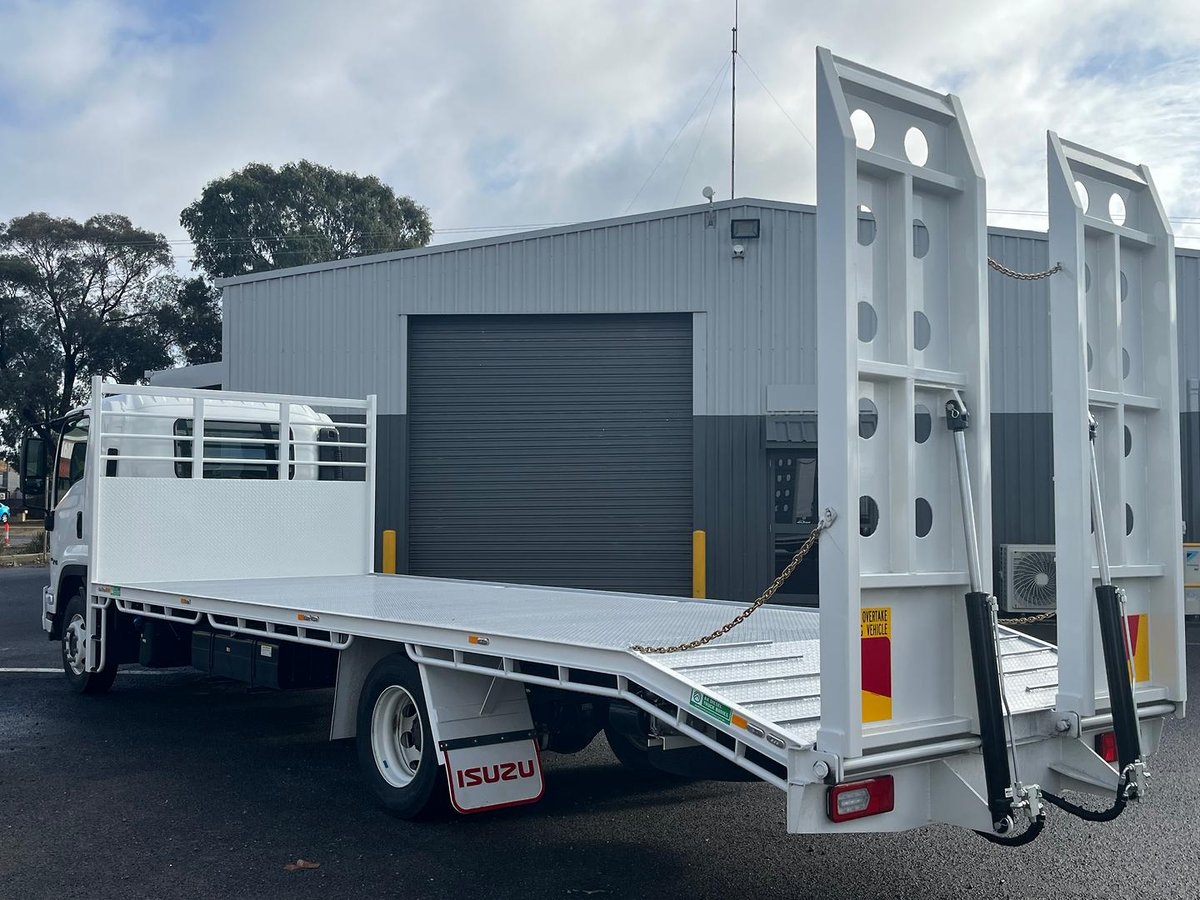

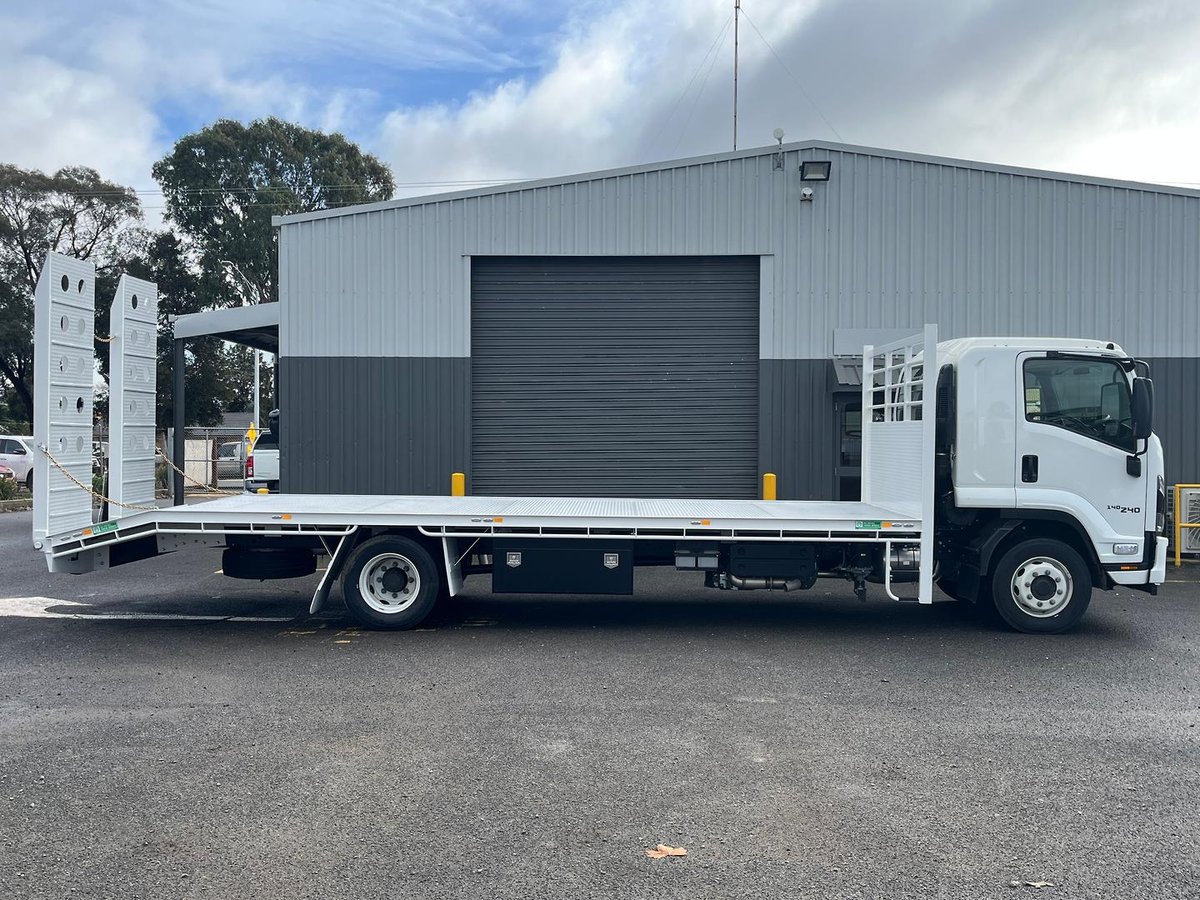

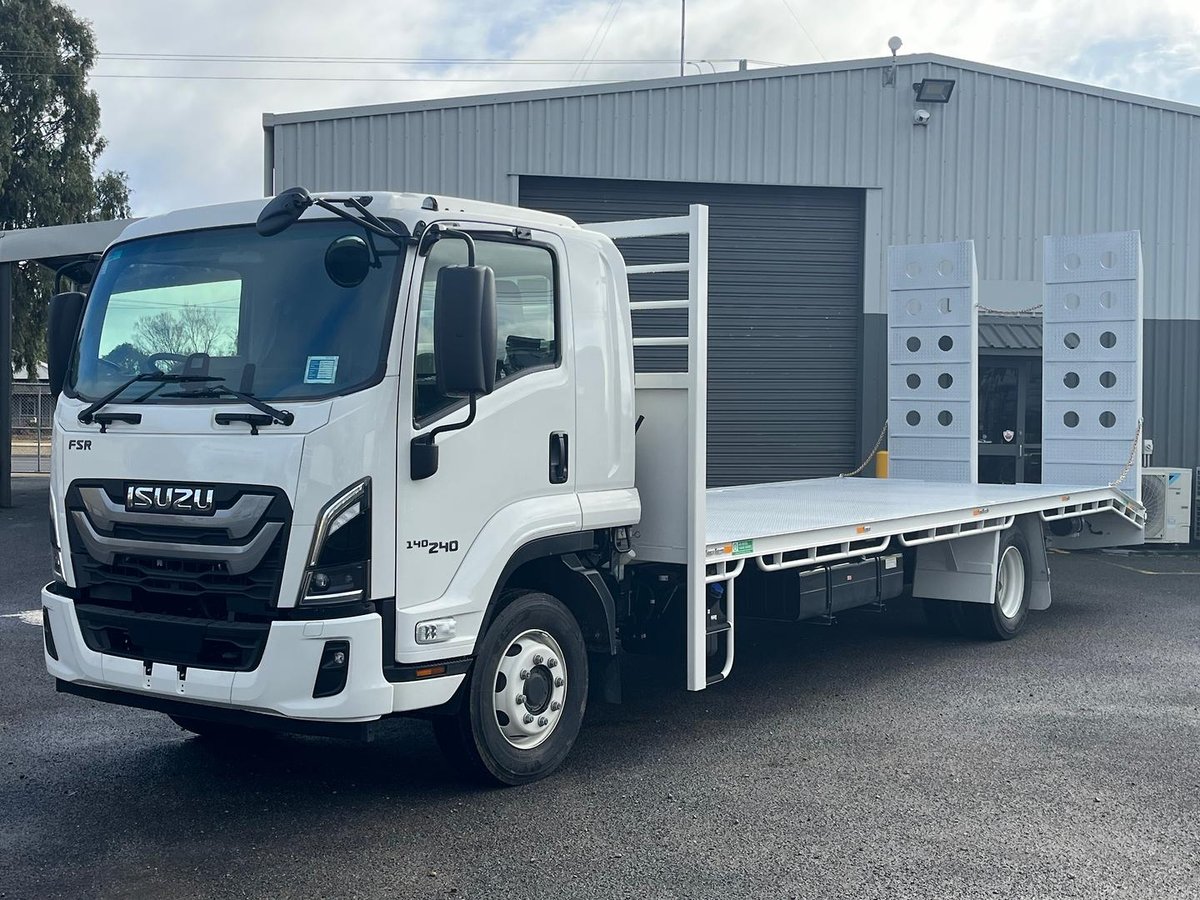

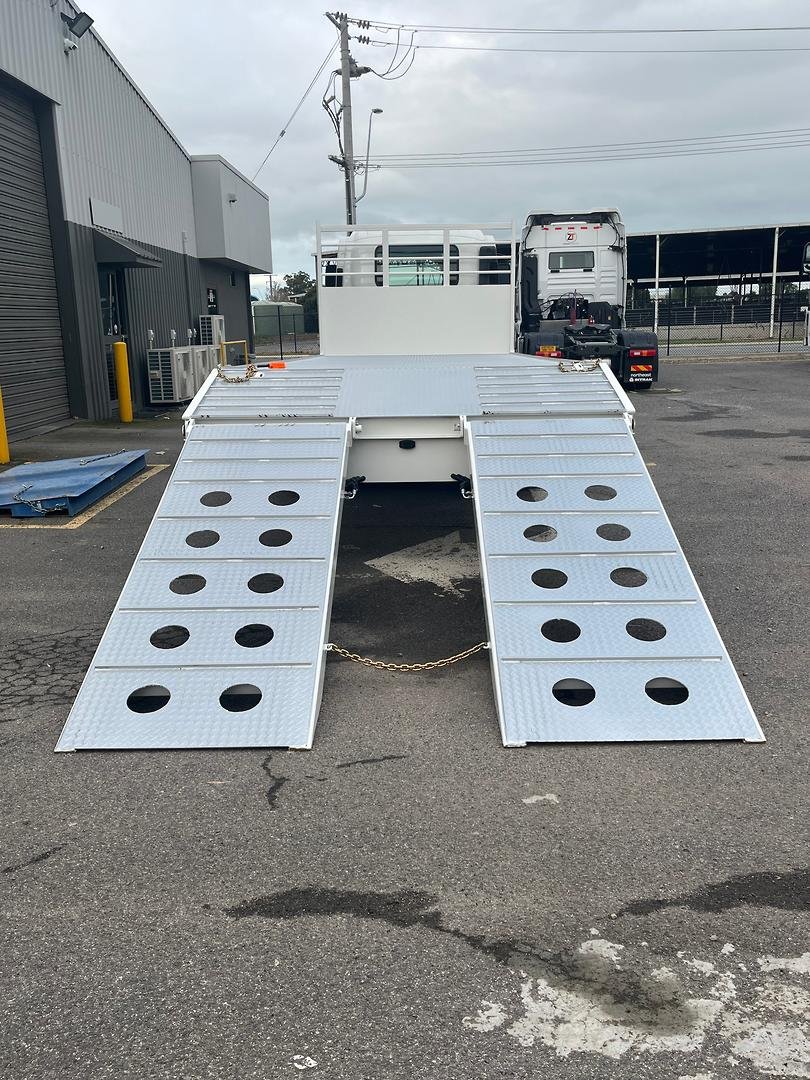

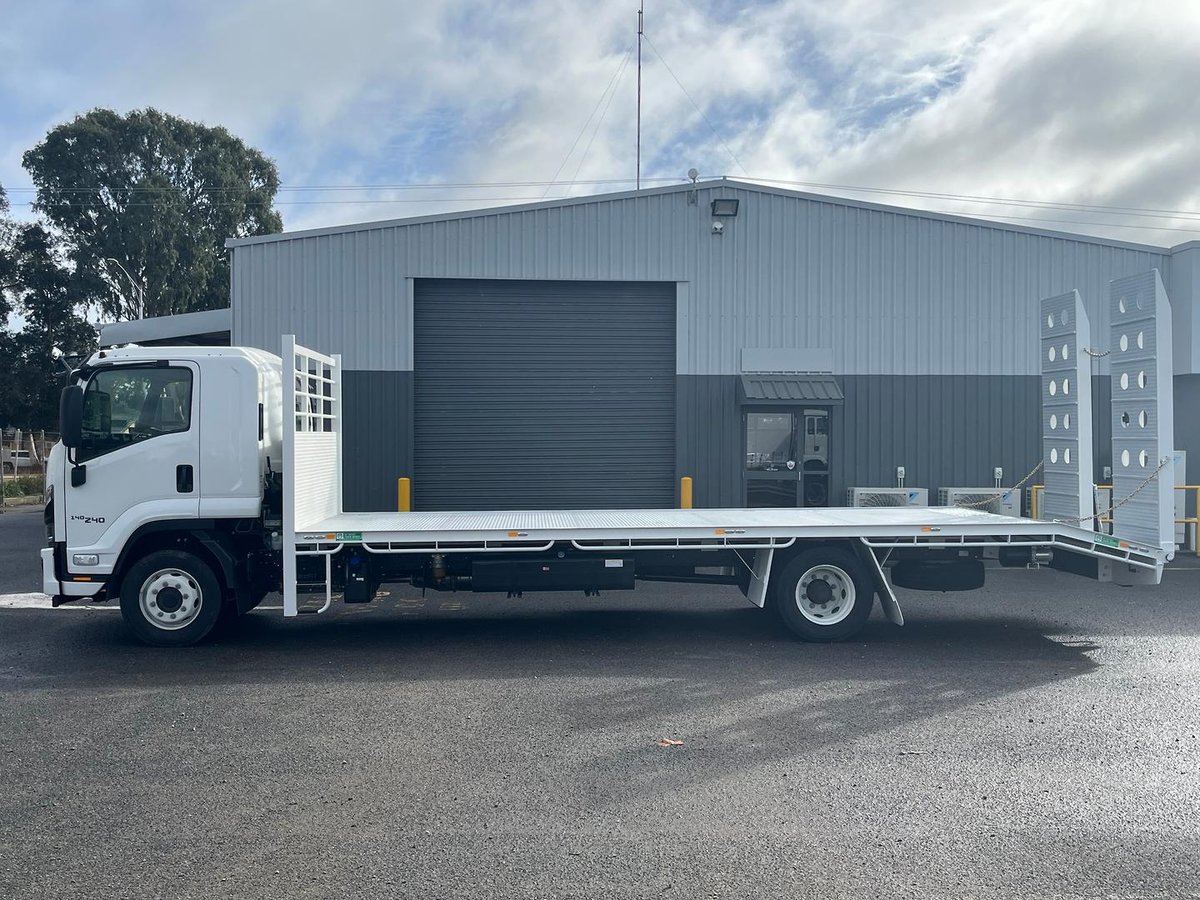

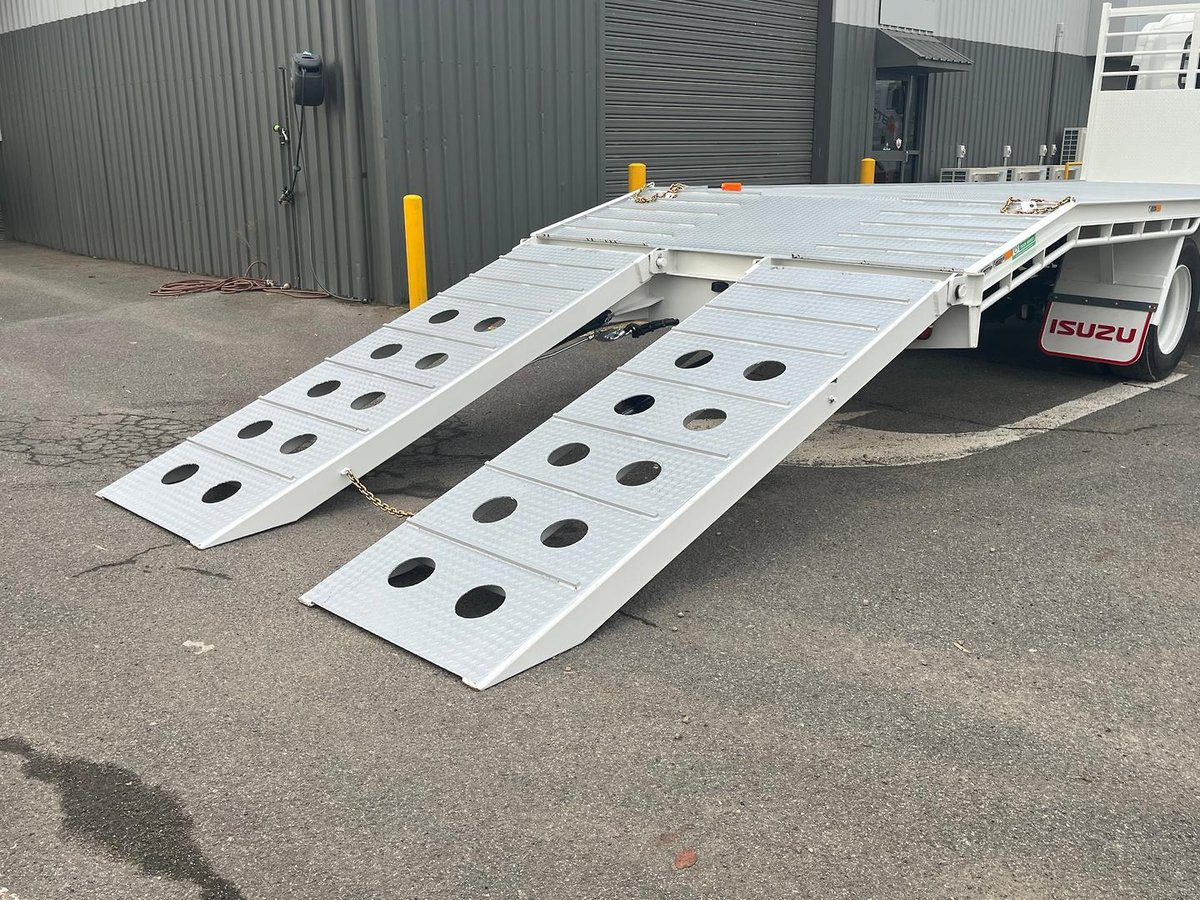

Isuzu FSR 140/120-240 AM R56 Beavertail Truck Built for machinery transport, construction, civil works and equipment hire applications, this Isuzu FSR 140/120-240 AM R56 combines Isuzu’s proven 240 PS driveline with a heavy-duty, approximately 7.9-metre beavertail tray. With a dual 12,000 kg / 14,000 kg GVM rating, automated manual transmission, advanced safety technology and hydraulically operated loading ramps, this truck is well suited to transporting excavators, skid steers, rollers, access equipment and other machinery. Engine & Performance - Engine: Isuzu 4HK1-TCH four-cylinder turbo-diesel - Displacement: 5.193 litres - Maximum power: 177 kW / 240 PS at 2,400 rpm - Maximum torque: 765 Nm at 1,600 rpm - High-pressure common-rail direct fuel injection - Turbocharged and intercooled - Exhaust brake fitted as standard - ADR 80/04 emissions compliant - Diesel Particulate Diffuser, Exhaust Gas Recirculation and Selective Catalytic Reduction emissions systems - 200-litre lockable diesel fuel tank - 28-litre AdBlue tank - Typical geared road speed of approximately 104 km/h at peak power Transmission & Driveline - Isuzu MZW-6P six-speed Automated Manual Transmission - Combines the convenience of automated shifting with the strength and efficiency of a manual transmission - Power Take-Off provision located on the left-hand side of the transmission casing - Full-speed Adaptive Cruise Control available on this AM model - Hill Start Aid - Single-drive rear axle - Rear axle capacity: 9,000 kg - Front axle capacity: 5,000 kg Beavertail Body The truck is fitted with an approximately 7.9-metre overall beavertail tray, manufactured and fitted by AA Diesel Truck Bodies. Body specifications include: - Approximately 6,500 mm main deck - Approximately 1,000 mm beavertail section - Approximately 400 mm allowance for loading ramps - Twin single-piece hydraulic loading ramps - Chequer-plate ramp infill - Over-centre safety valves fitted to hydraulic cylinders - Hydraulic system plumbed using hard pipe - Heavy-duty headboard with chequer plate extending up to the rear cab window - Heavy-duty 5 mm chequer-plate floor - 100 mm PFC coaming rails - 75 × 50 mm RHS crossmembers positioned approximately every 300 mm - Full-length tie-down pipe - Square-bar traction grips fitted to the beavertail section - Eight chain tie-down points - LED clearance lights - Existing Isuzu rear combination lights retained - Electrical wiring protected inside pipe - Under-tray toolbox, approximately 600–1,200 mm long where space permits - 25-litre under-tray handwash station - VASS certification included Weight Ratings - GVM: 12,000 kg or 14,000 kg - GCM: 18,500 kg - Front axle loading limit: 5,000 kg - Rear axle loading limit: 9,000 kg Dimensions - Wheelbase: 5,560 mm - Cab chassis overall length: approximately 9,150 mm - Cab-to-rear-axle measurement: approximately 4,664 mm - Overall cab width: approximately 2,195 mm - Turning circle kerb-to-kerb: approximately 19.4 metres - Front overhang: approximately 1,166 mm - Rear overhang, cab chassis: approximately 2,425 mm Suspension, Steering & Brakes - Power-assisted recirculating-ball steering - Front single-stage steel taper-leaf suspension - Double-acting hydraulic shock absorbers with stabiliser bar - Rear two-stage multi-leaf main and helper spring suspension - Full-air drum brakes - Electronic Braking System - Spring-applied park brake acting on all rear wheels - 19.5-inch steel wheels - Michelin 265/70R19.5 tyres Advanced Safety Technology - Advanced Emergency Braking - Adaptive Driving Beam - Anti-lock Braking System - Electronic Stability Control - Anti-Skid Regulator traction control - Forward Collision Warning - Front Cross Traffic Alert - Lane Departure Warning - Distance Warning System - Traffic Movement Warning - Traffic Sign Recognition - Intersection Warning System - Intelligent Speed Limiter - Attention Alert System - Full-speed Adaptive Cruise Control - Driver and front passenger airbags - Seatbelt pretensioners - Door-mounted cornering lamps - Reverse alarm Cab Comfort & Technology - ISRI 6860/875 NTS2 air-suspension driver’s seat - Automatic climate-control air conditioning - Tilt and telescopic steering column - Cruise control - Heated and electrically operated exterior mirrors - LED headlights, daytime running lamps, fog lamps and rear lamps - Overhead storage compartments, cup holders and door pockets - Central locking and immobiliser - 24-volt power outlet MyIsuzu Co-Pilot Multimedia Unit - 10.1-inch high-definition touchscreen - Truck-tailored satellite navigation - Live traffic and map-content updates - Wired Apple CarPlay and Android Auto - AM/FM and DAB+ radio - Bluetooth phone connectivity - USB socket - Wi-Fi connectivity - 32 GB internal storage Isuzu Warranty & Support - Six-year standard factory warranty - Up to 300,000 km, subject to Isuzu’s warranty conditions - Six years of 24/7 roadside assistance - Isuzu’s nationwide dealer, service and parts network - Service intervals of up to 25,000 km, 12 months or 500 operating hours, whichever occurs first Why Buy from Auto Group ? When you purchase through Auto Group , you receive more than just a truck. Our team can assist throughout the complete ownership process, including: - Professional advice to ensure the truck and body suit your operating requirements - Assistance with finance, registration and delivery arrangements - Dedicated aftersales and service support - Access to genuine Isuzu parts and accessories - Experienced workshop technicians - Ongoing support after the truck has been delivered - Support through the extensive Isuzu dealer network for operators travelling interstate Contact Auto Group today for pricing, availability and further information on this Isuzu and make it yours today!

Specifications

Badge

FSR 140 120 240 AM R56

Location

Shepparton

Truck Type

beavertail

About This Isuzu

The 2025 Isuzu F SERIES is a new a versatile commercial vehicle widely used across Australian logistics, freight, and construction industries. Listed at $193,000 through North East Isuzu Shepparton in VIC, this machine is ready for inspection and enquiry. Browse and compare similar trucks for sale on Asset Scanner, or get a free equipment finance quote through our partner Equifund Financial Group.
